To provide global satellite users with highly reliable, short-cycle, low-cost ground system products, as well as station survey, system integration, operation and maintenance and other one-stop solutions.

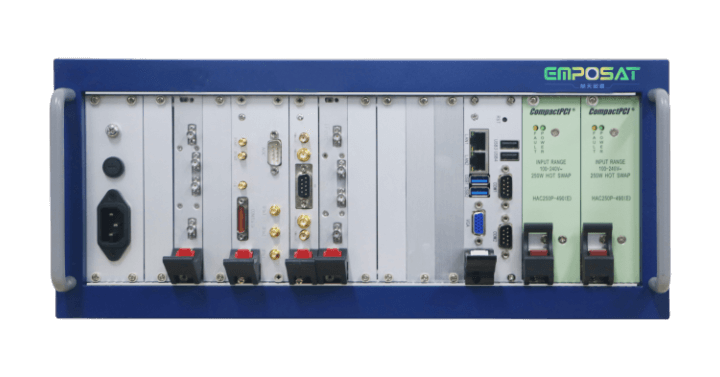

Satellite ground test equipment
Integrates X-band or S-band up and down converters, supports RF testing, includes remote control, telemetry, distance measurement, speed measurement and other functions in the TT&C system, and supports LVDS, OC, 1553B, RS422/485/232, CAN bus, TTL and other interfaces , which can be used to simulate the ground TT&C equipment and the transponder to form a TT&C system, and test the various functions and performance indicators of the transponder.
Main functional technical indicators:
- The correct rate of remote control small ring monitoring: 0.9999
- Telemetry demodulation loss: ≤2.0dB (standard TTC)
- Ranging: σR≤13m (standard TTC)
- Speed measurement: σR≤5cm/s (standard TTC)
